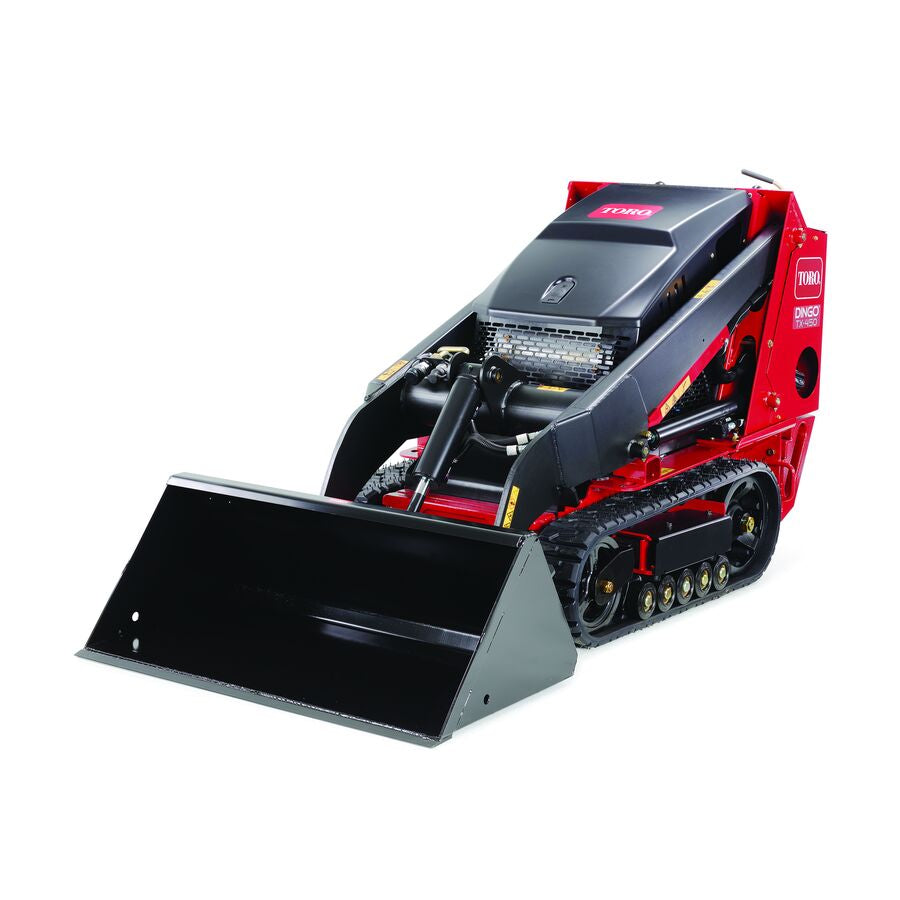

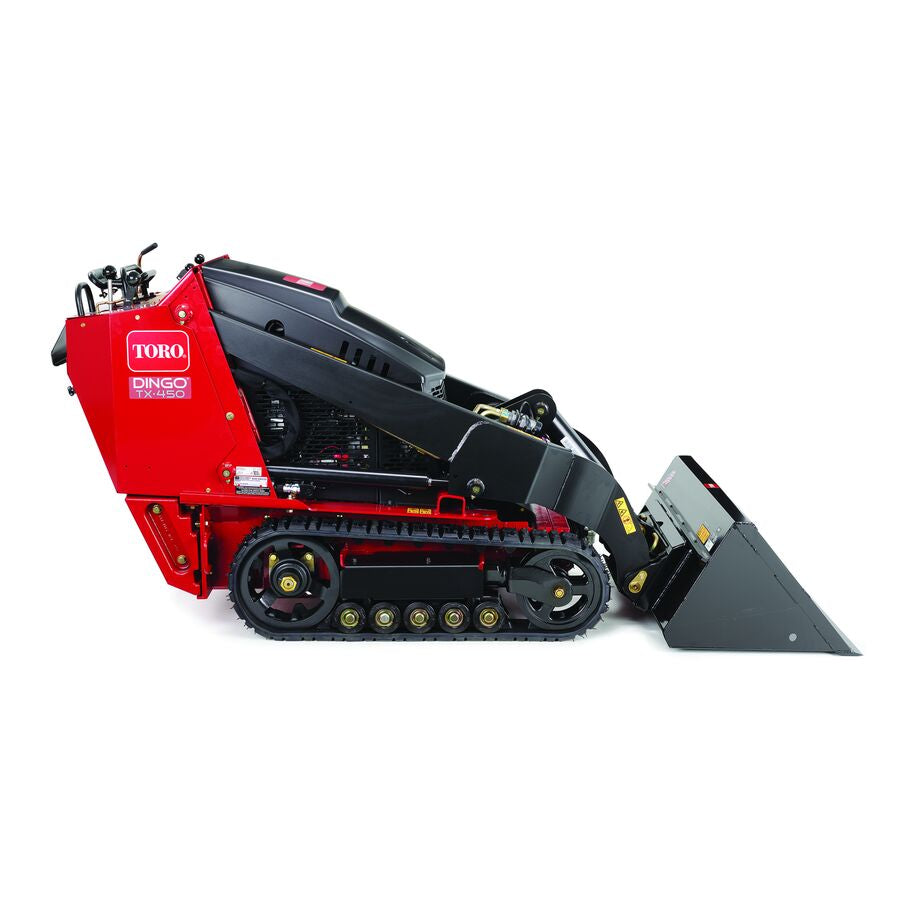

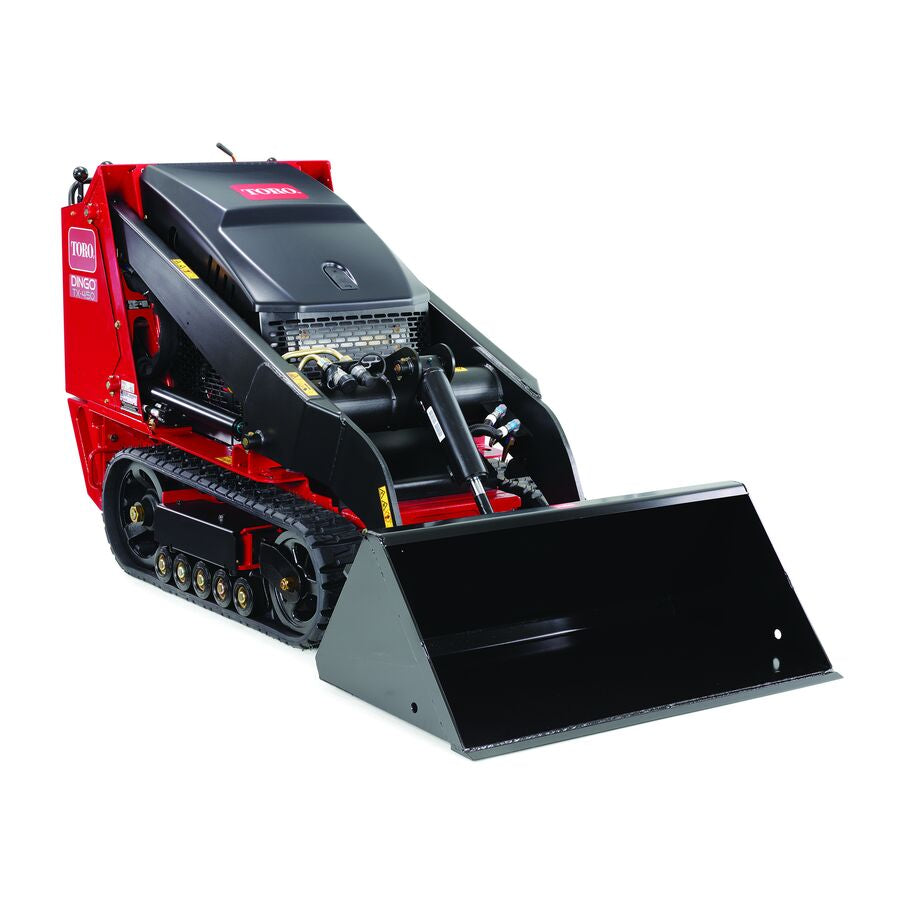

TORO 22371 DINGO TX450 Narrow Track

TORO 22371 DINGO TX450 Narrow Track

Call for Availability

Regular price $46,561.00 CAD
Regular price $46,561.00 CAD Sale price $46,561.00 CAD
Sale Sold out
×

SKU:22371

Dingo TX 450 Track Loader

The gas-powered Dingo® TX 450 offers cost-effective versatility to tackle outdoor jobs quickly and efficiently. Whether a seasoned landscaping pro or a first-time user, the only walk-behind loader in its class makes it easy to auger, trench, lift and load in tight spaces.
  • The Dingo TX 450 is the right size for jobs that require more than handheld tools, in spaces that don’t allow for bulky machinery.
  • The lightweight, narrow design produces minimal turf disturbance.
  • Intuitive controls allow both first-time users and experienced operators to work quickly and efficiently.
  • The only walk-behind loader in its class, the Dingo TX 450 is designed for simple maneuverability and unbeatable precision in tight spaces.
  • The Dingo TX 450 is built on a 20-year foundation of durability, longevity and dependability.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Dump Angle 38 deg
Dump Height 46.1 in. / 117.0 cm
Engine Displacement 725 cc (44 cu. in.)
Engine Horsepower 25 hp (18.6 kW) @ 3,600 rpm
Engine Make Kohler
Engine Model Command Pro Series CH740
Fuel Tank 6 gal. / 22.7 L
Fuel Type Gasoline
Ground Clearance 4.6 in. / 11.56 cm
Ground Pressure 5.1 psi
Ground Speed - Forward Up to 4.5 mph / 7.2 kph
Ground Speed - Reverse Up to 2.0 mph / 3.2 kph
Height 46.1 in. / 117.0 cm
Height - With Bucket 46.1 in. / 117.0 cm
Hinge Pin Height 65.8 in. / 167.1 cm
Hydraulic Flow - Auxiliary 11.4 GPM
Hydraulic Flow - Traction 16.9 GPM
Hydraulic Pressure 3,000 psi
Length 70.7 in. / 179.5 cm
Length - With Bucket 92 in. / 233.6 cm
Loader Arms Radial
Max Operating Height 90.1 in. / 228.8 cm
Oil Capacity 2 qt / 1.9 L
Rated Operating Capacity* 535 lbs / 242.67 kg
Reach - Fully Raised 21.8 in. / 55.3 cm
Reservoir Capacity 10 gal. / 37.8 L
Tip Capacity 1,530 lbs / 694 kg
Track Length 96.6 in. / 245.3 cm
Track Width 5.9 in. / 14.9 cm
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight 1,882 lbs / 854 kg
Wheelbase 31.2 in. / 79.2 cm
Width 33.7 in. / 85.5 cm
Width - With Bucket 33.7 in. / 85.5 cm
