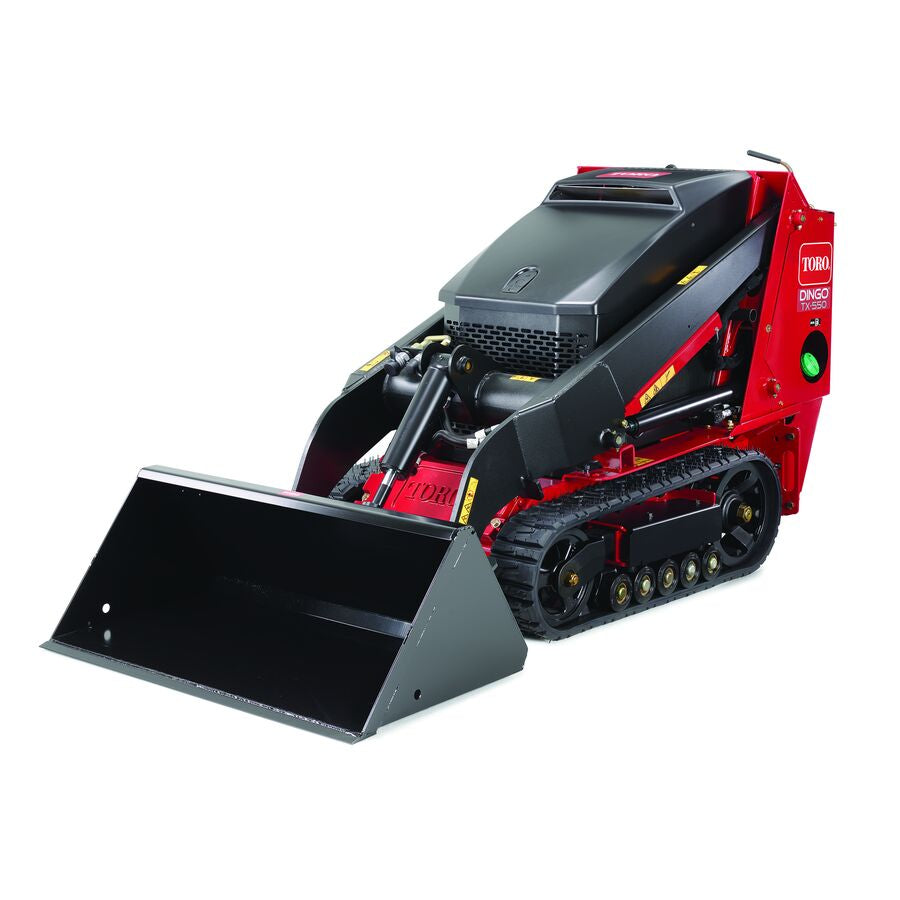

TORO 22374 DINGO TX550 Narrow Track

TORO 22374 DINGO TX550 Narrow Track

Call for Availability

Regular price $49,514.00 CAD
Regular price $49,514.00 CAD Sale price $49,514.00 CAD
Sale Sold out
×

SKU:22374

Dingo TX 550 Track Loader, Narrow Track

The Dingo® TX 550 delivers cost-effective power to take on landscaping jobs quickly and efficiently. Through a superior hydraulic system design, professional landscapers and homeowners both enjoy faster digging, trenching, lifting, loading and much more — all in a compact, lightweight design that’s easy to operate.

  • Diesel Power: Provides long-lasting, reliable power for increased productivity and reduced downtime.
  • Hydraulic Performance: Dedicated 4-pump hydraulic system
  • Compact Size: The Dingo TX 550 is the right size for jobs that require more than handheld tools, in spaces that don’t allow for bulky machinery.
  • Small Footprint: The lightweight, narrow design produces minimal turf disturbance.
  • Easy Operation: Intuitive controls allow both first-time users and experienced operators to work quickly and efficiently.
  • Walk-Behind: The only walk-behind loader in its class, the Dingo TX 550 is designed for simple maneuverability and unbeatable precision in tight spaces.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Liquid Cooled
Dump Angle 38 deg
Dump Height 46.1 in. / 117.0 cm
Engine Displacement 901 cc (55 cu. in.)
Engine Horsepower 24.8 hp (18.5 kW) @ 3,200 rpm
Engine Make Kubota
Engine Model D902E3B
Fuel Tank 6 gal. / 22.7 L
Fuel Type Diesel
Ground Clearance 4.6 in. / 11.56 cm
Ground Pressure 5.2 psi
Ground Speed - Forward Up to 4.5 mph / 7.2 kph
Ground Speed - Reverse Up to 2.0 mph / 3.2 kph
Height 46.1 in. / 117.0 cm
Height - With Bucket 46.1 in. / 117.0 cm
Hinge Pin Height 65.8 in. / 167.1 cm
Hydraulic Flow - Auxiliary 13.8 GPM
Hydraulic Flow - Traction 16.9 GPM
Hydraulic Pressure 3,000 psi
Length 70.7 in. / 179.5 cm
Length - With Bucket 92 in. / 233.6 cm
Loader Arms Radial
Max Operating Height 90.1 in. / 228.8 cm
Oil Capacity 3.8 qt / 3.6 L
Rated Operating Capacity* 553 lbs / 250.8 kg
Reach - Fully Raised 21.8 in. / 55.3 cm
Reservoir Capacity 10 gal. / 37.8 L
Tip Capacity 1,580 lbs / 751 kg
Track Length 96.6 in. / 245.3 cm
Track Width 5.9 in. / 14.9 cm
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight 1,904 lbs / 863.6 kg
Wheelbase 31.2 in. / 79.2 cm
Width 33.7 in. / 85.5 cm
Width - With Bucket 33.7 in. / 85.5 cm
