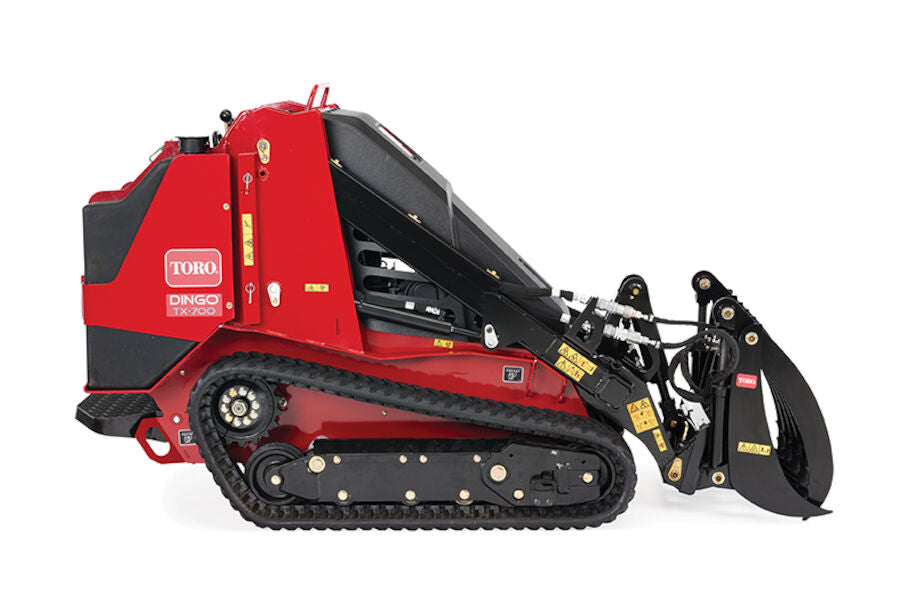

TORO 22751 DINGO TX700 Wide Track

TORO 22751 DINGO TX700 Wide Track

Call for Availability

Regular price $55,878.00 CAD
Regular price $55,878.00 CAD Sale price $55,878.00 CAD
Sale Sold out
×

SKU:22751

Dingo TX 700 Track Loader, Wide Track

Designed to give you more power in a compact package, the Toro® Dingo® TX 700 expands labor savings beyond just homeowner projects. This no-nonsense workhorse packs 700 lbs of rated operating capacity in a smaller footprint, so it’s ideal for projects where homeowners and contractors are working in confined spaces.

  • 700 lbs. of rated operating capacity in a smaller footprint, making it ideal for projects where operators need to reach tight areas or work in confined spaces.
  • Intuitive patented traction control and a dedicated stand-on platform offers increased comfort and visibility to the operator.
  • Industry-tested Camso track system works with less aggressive tread pattern to minimizes turf damage
  • Compatible with dozens of attachments, the Dingo TX 700 can be used for a wide range of jobs.

Specifications

Air Filter Dual Element
Cooling System Combo Downflow Radiator and Cooler Oil Cooler
Dump Angle 42 deg
Dump Height 52.9 in. / 134.4 cm
Engine Displacement 1262 cc (77 cu.in.)
Engine Horsepower 24.7 hp (18 kW) @ 3,000 rpm
Engine Make Yanmar
Engine Model 3TNV80F
Fuel Tank 5.5 gal. / 20.8 L
Fuel Type Diesel
Ground Clearance 5.25 in. / 13.3 cm
Ground Pressure 6.4 psi
Ground Speed - Forward Up to 4.3 mph / 7.0 km/h
Ground Speed - Reverse Up to 4 mph / 6.4 km/h
Height 55.3 in. / 140.5 cm
Height - With Bucket 55.3 in. / 140.5 cm
Hinge Pin Height 73.5 in. / 186.7 cm
Hydraulic Flow - Auxiliary 13.7 GPM
Hydraulic Flow - Traction 14.5 GPM
Hydraulic Pressure 3,000 psi
Length 82 in. / 208.3 cm
Length - With Bucket 102.8 in. / 261.3 cm
Loader Arms Radial
Max Operating Height 97 in. / 246.3 cm
Oil Capacity 3.6 qt / 3.4 L
Rated Operating Capacity* 708 lbs / 321.1 kg
Reach - Fully Raised 31 in. / 78.7 cm
Reservoir Capacity 10 gal. / 37.8 L / 40 Qt.
Tip Capacity 2,023 lbs / 918 kg
Track Length 126.6 in. / 321.5 cm
Track Width 9.1 in. / 23.1 cm
Tracks MERT Track With Turf Friendly Style Tread
Traction Dual Hydrostatic Pump
Weight 2,862 lbs / 1,298 kg
Wheelbase 39 in. / 99.0 cm
Width 40.2 in. / 102.1 cm
Width - With Bucket 41.4 in. / 105.2 cm
